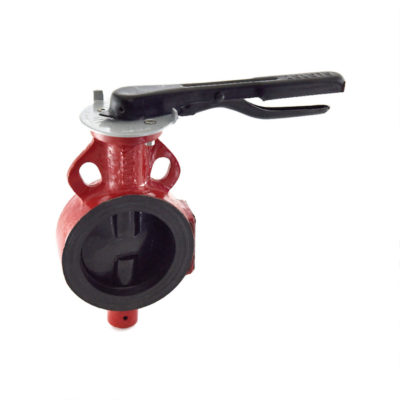

Zoloto Butterfly Valve (Wafer Type), PN 2.5 with S.G Iron Disc, 40-150mm
Price range: ₹ 5,638.04 through ₹ 14,619.02 GST included
Design Standard IS 13095 / BS EN 593 (BS 5155). Wafer Type. Lever Operated. S.G Iron construction. S.G Iron disc which is accurately guided between the two stems. Two Piece Stem design which is precisely guided between the PTFE / Bronze bushes. Compatible to sandwich between flanges as per BS 10 Table D, E, F,H, DIN, PN 10, PN 16, PN 25, PN 40, ASA 150, ASA 300, IS 778, IS 6392 Table 17 and IS 1538.
Description
Zoloto Butterfly Valve (Wafer Type), PN 2.5 with S.G Iron Disc, 40-150mm is Suitable for Water Application. This Valve is Integrally moulded rubber lining (EPDM / Nitrile / Neoprene* / Viton* / Silicon*) as per requirement which provides seating to the valve disc, as a primary seal to the stem and gasket joint with matching pipe flanges. *Valves with Neoprene / Viton / Silicon lining can also be provided at nominal extra cost.
Features
- Design Standard IS 13095 / BS EN 593 (BS 5155)
- Wafer Type
- Lever Operated
- S.G Iron construction
- S.G Iron disc which is accurately guided between the two stems
- Two Piece Stem design which is precisely guided between the PTFE / Bronze bushes
- Compatible to sandwich between flanges as per BS 10 Table D, E, F,H, DIN, PN 10, PN 16, PN 25, PN 40, ASA 150, ASA 300, IS 778, IS 6392 Table 17 and IS 1538
Specifications
- Brand : Zoloto
- Material : S.G.Iron
- Size : 40-150mm
- Maximum Working Temperature : 90 Deg C
- Type : Butterfly Valve (Wafer Type) PN 2.5 with S.G Iron Disc-Lever Operated
- HSN Code : 84818030
- Maximum Working Pressure : 2.5 Mpa
