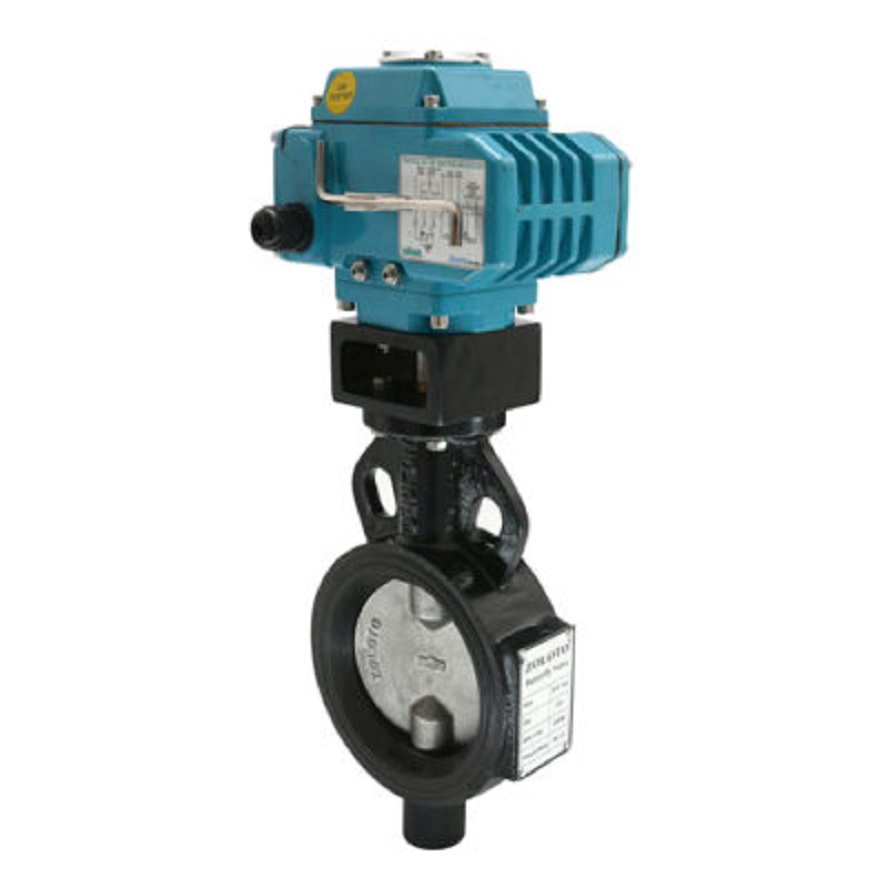

Zoloto Butterfly Valve (Wafer Type), PN 1.0 with Electrical Actuator, 40-350mm
Price range: ₹ 43,790.98 through ₹ 99,710.00 GST included
Design Standard IS 13095 / BS EN 593 (BS 5155). Wafer Type. Electrical Acuator Operated. S.G Iron construction. Inbuilt thermal protection and space heater. Inbuilt micro switch position feedback. For manual operation allen key is provided. Instrumental in Zero Water Waste installations.
Description
Zoloto Butterfly Valve (Wafer Type), PN 1.0 with Electrical Actuator, 40-350mm is a Stainless Steel (CF8 / CF8M*) Disc which is accurately guided between the two stems. Its Actuator is with position indicator and adjustable center stopper for both open and closed position. Comes with Integrally moulded rubber lining (EPDM / Nitrile / Neoprene* / Viton* / Silicon*) as per requirement which provides seating to the valve disc, as a primary seal to the stem and gasket joint with matching pipe flanges. *Valves with Neoprene / Viton / Silicon lining, IS 3444 Gr.4 /CF8M (S.S 316) Disc and 24VDC Input Voltage can also be provided at nominal extra cost.
Features
- Design Standard IS 13095 / BS EN 593 (BS 5155)
- Wafer Type
- Electrical Acuator Operated
- S.G Iron construction
- Inbuilt thermal protection and space heater
- Inbuilt micro switch position feedback
- For manual operation allen key is provided
- Instrumental in Zero Water Waste installations
Specifications
- Brand : Zoloto
- Material : S.G.Iron
- Size : 40-150mm
- Maximum Working Temperature : 90 Deg C
- Type : Butterfly Valve (Wafer Type) PN 1.0 with Electrical Actuator
- HSN Code : 84818030
- Maximum Working Pressure : 1.0 Mpa
