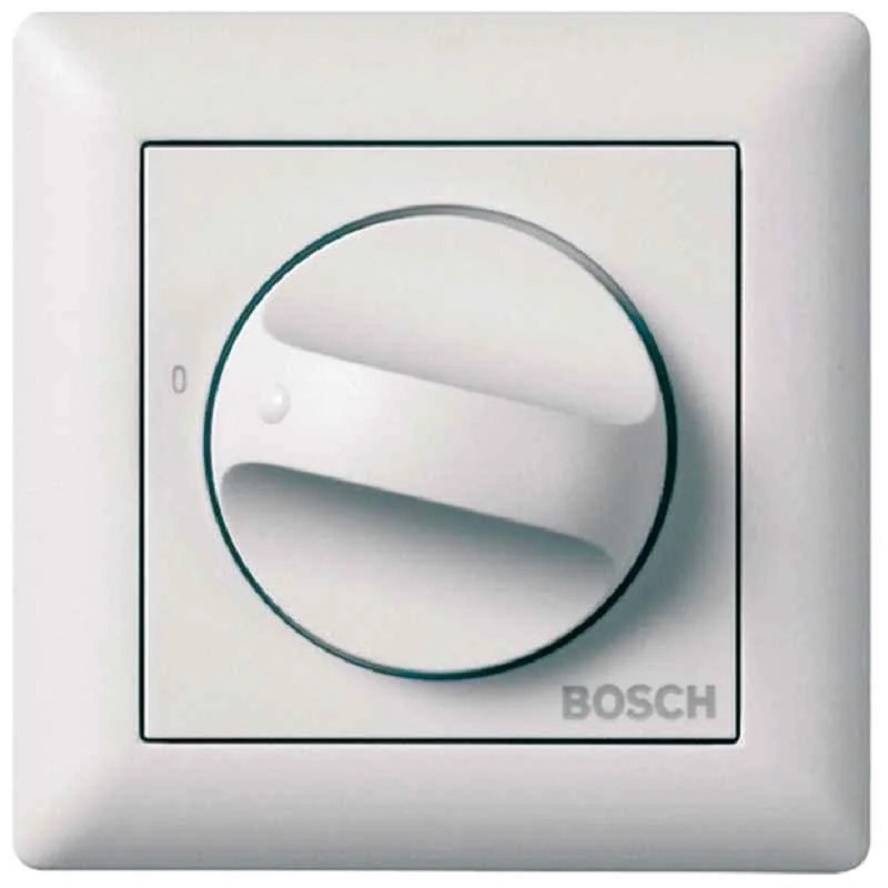

Bosch LBC1400/10 Volume control, 12W (BS)
₹ 4,779.00 GST included
Volume control 12 W. Power-save version. Built-in 24 VDC override relay. Continuous rotating system. Suitable for 3-wire and 4-wire systems. Program selector with up to five channels. Complies with international installation and safety regulations.
In stock
Description
Bosch Volume control, 12W (BS) these Public address systems are often used for both announcements and background music distribution. Volume controls can be used to adjust the level locally. In addition to volume control, program selectors can also be installed to select five different programs locally. In the event of an (emergency) announcement, the built-in relay ensures that the message is broadcast at a preset level, independent of the local volume setting. The volume controls come in three versions according to power rating: 12 W, 36 W, and 100 W. The total load of the loudspeakers connected to a volume control
may not exceed the rated power.
Features
- Volume control 12 W
- Power-save version
- Built-in 24 VDC override relay
- Continuous rotating system
- Suitable for 3-wire and 4-wire systems
- Program selector with up to five channels
- Complies with international installation and safety regulations
Specifications
- Brand : Bosch Paco
- Electrical : Rated power 12 W
- Input voltage : 100 V
- Connector : Screw terminal
- Dimensions (W x H x D) : 87 x 87 x 45.6 mm
- Weight : 226 g
- Color : White (RAL 9010)
