GST – NRP00 Network Repeater Panel
₹ 34,102.00 GST included
Description

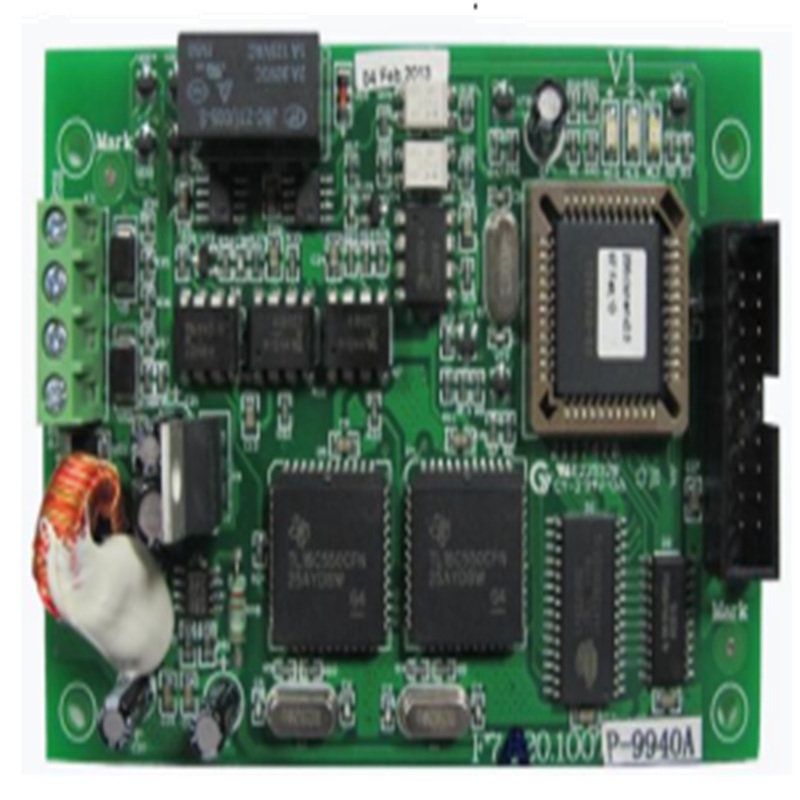

The GST-NRP00 Network Repeater Panel is based on GST network technology, providing remote control and indication of the fire alarm system.
A certain network card is required for sitting to the network.
1.0mm2 or above fire cable is recommended for communication cable, and 1.5mm2 or above fire cable is recommended for power supply. All cables should be subject to local codes.
Features
- Supports Class A RS485 network communication for reliable data transmission
- Enables networking of multiple GST fire alarm control panels
- Provides fault-tolerant communication loop for improved system reliability
- Ensures stable and high-speed data exchange between connected panels
- Designed for large-scale fire alarm network integration
- Easy installation and configuration within compatible GST systems
- Robust design for continuous operation in critical safety systems
Specifications
- Brand GST
- Product Type: Networking Repeater Panel
- Model Number GSTNRP00
- Communication Type RS485
- Network Configuration Class A
- Function Networking of Fire Alarm Control Panels
- Communication Protocol GST Proprietary Protocol
- nstallation Internal card for compatible GST control panels
- Dimension: 390mm x 270mm x 100mm
- Operation Voltage: 24VDC
- Standby Power≤ 9W
- Maximum Power≤ 13W
- Operation Environment: Temperature: 0℃ ～ +40℃
- Relative Humidity: 95% non-condensing
