GST Conventional Multisensor Detector, DC-9101E + DB-01 (MOQ-2Pcs)

Name: GST Conventional Multisensor Detector, DC-9101E + DB-01 (MOQ-2Pcs)
SKU: FSIN0000362526
Price: 1829.00 INR
Availability: InStock

See all products from gst

₹ 1,829.00 GST included

Strong Environmental Adaptability due to Drift Compensation. Reed switch testing. Removable innovative sensing chamber, easy for Maintenance. Fire LED allows 360 Deg. viewing. Remote Indicator output available. 2 levels Sensitivities Programmable, fix temperature or rate of rise programmable. 2 levels Smoke Sensitivities Programmable, level 1 complies with EN 54-7. Heat part complies with EN 54-5.

In stock

Compare

Product Code : FSIN0000362526 Brand: GST Seller: Approved by : [woo_pro_badges_extended]

quick processing
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

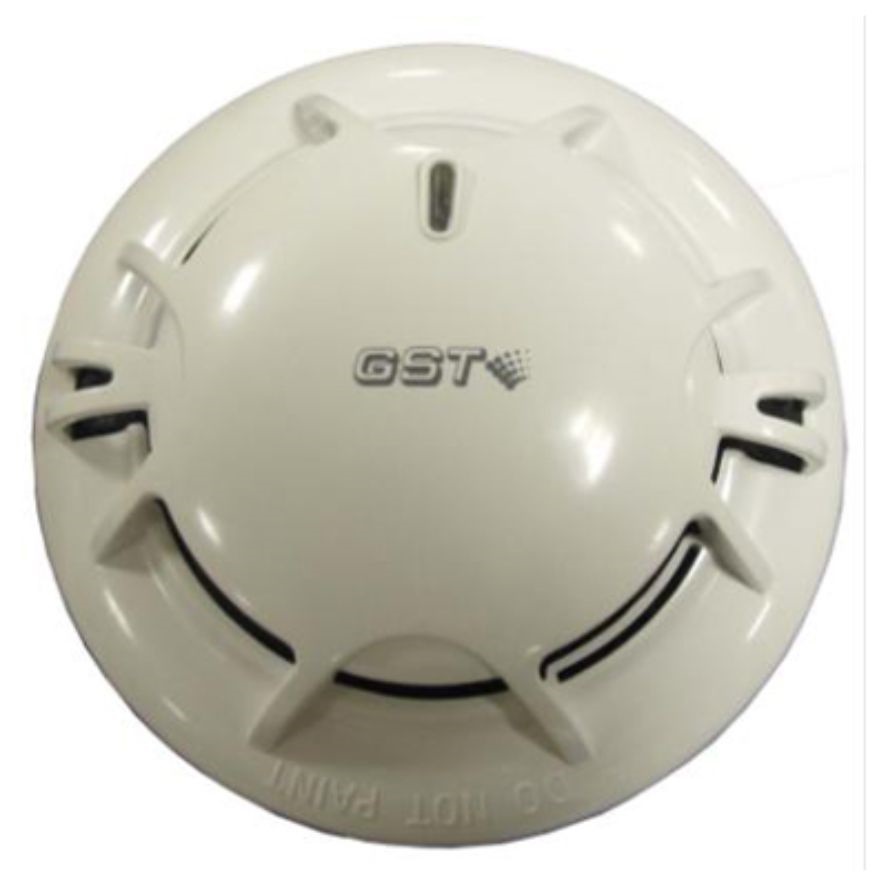

GST Conventional Multisensor Detector, DC-9101E+DB-01 is a kind of Combination Detector Consisting of Smoke Sensing parts and Semi-conductor Heat Sensing parts in Technological Structure and Circuit Structure. Together with DP-9907, it can connect to Conventional Fire Alarm Control
Panel or connect with intelligent Fire Alarm Control Panel through I-9319 Addressable Zone Monitor Unit conduct the processing of Detector signals. The Detector has the advantages of both Conventional Photoelectric Detector and rate of rise and Fixed Temperature Heat Detector.

Features

Strong Environmental Adaptability due to Drift Compensation
Reed switch testing
Removable innovative sensing chamber, easy for Maintenance
Fire LED allows 360 Deg. Viewing
Remote Indicator output available
2 levels Sensitivities Programmable, fix temperature or rate of rise programmable
2 levels Smoke Sensitivities Programmable, level 1 complies with EN 54-7
Heat part complies with EN 54-5

Specifications

Brand : GST
Operating Voltage : 24VDC (16VDC~28VDC)
Standby Current : less or equal to 60μA
Alarm Current : Less or equal to 55mA
Fire LED : Red, periodically flash once in polling when the status is set to “ON”; don’t illuminate when the status is set to “OFF”. Periodically flash twice in fault or sensing chamber dirty; illuminate in alarming.
Detector Class : A2R
Action Temperature : 62 Deg. C
Environment Temperature : Minus 10 Deg. C～plus 50Deg. C
Weight : About 110g
