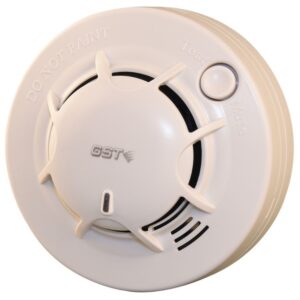

GST Stand Alone Smoke Detector, S-9102R (MOQ-2Pcs)
₹ 1,829.00 GST included

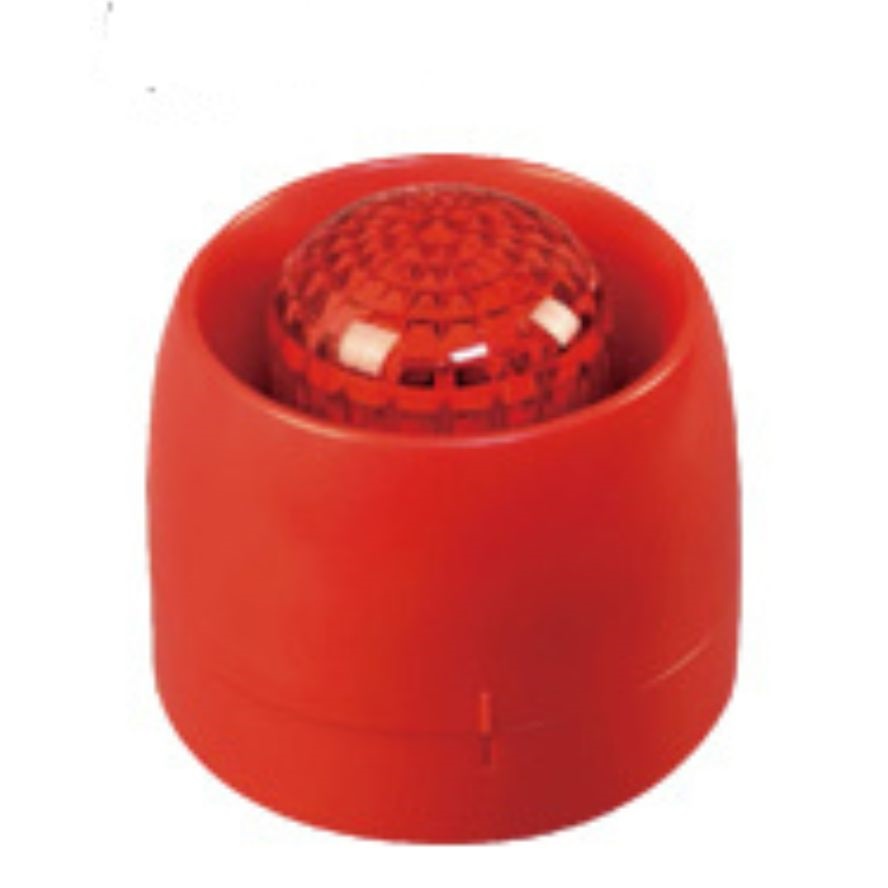

GST Conventional Sounder Strobe, C-9403
₹ 2,950.00 GST included
Strobe provided by High Intensity LED cluster. 2 Selectable Tones. LPCB approved. Standard: EN 54-3.
In stock
Description
GST Conventional Sounder Strobe, C-9403 is an Audible
and Visible Alarm Device used to Warn people in Field
when Fire occurs. It can give Audible and Visible Alarm Signal when applied to external 24VDC power (D1 connected with positive and D2 with negative). A 25.5mm High Shallow Base and a 40mm high Deep base are available. Unless otherwise stated, all Descriptions in this Manual take the shallow base as Example.
Features
- Strobe provided by High Intensity LED cluster
- 2 Selectable Tones
- LPCB approved
- Standard: EN 54-3
Specifications
- Brand : GST
- Operating Voltage : Power: 24VDC (20V-28V)
- Operating Current : Start current s35mA
- Flash Frequency : 2.0 x (1+20 percent)Hz
- Sound Level : Tone 1-not lower than 95dB (at 1mdistance), Tone 2-not lower than 95dB(at lm distance)
- Ingress Protection Rating : IP33C
- Material of Enclosure : ABS
- Weight : About 355g
