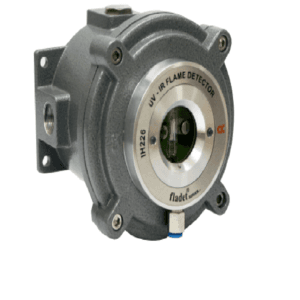

Fladet Series - IH226 UV-IR Flame Detector
₹ 51,684.00 GST included
Next product
Fladet Series - IH8227 Triple Sensor Flame Detector (UV/IR) for Flameproof area application
₹ 84,134.00 GST included
GST Fire Alarm control panel-6 Loop
₹ 243,552.00 GST included
The FACP integrates an ARM7-Cotex CPU with inbuilt Linux OS. Its friendly and graphical screen can be touchable in operation.
Description
Product Introduction
GST-IFP4M is an Intelligent Fire Alarm Control Panel (FACP) designed for medium- to large-scale facilities. It complies to UL 864 standard with features of easy installation, operation, and maintenance. The FACP integrates an ARM7-Cotex CPU with inbuilt Linux OS. Its friendly and graphical screen can be touchable in operation.
Features
- English & configurable language (optional Arabic)
- 7.0” 800x480 color capacitive touch screen
- Redundant CPU*
- CAN, TCP/IP*, Fiber networking
- USB port for F/W upgrade
- Built-in printer, optional external USB printer
- Remote diagnosis via Ethernet*
- Support USB dongle for securing project database
- Up to 250 panels network
Specifications
- Standard: UL864 10th Edition / NFPA72
- Main Input Voltage: 220/230 VAC (+10/-15%) 50/60 Hz
- Input Current Rating: 3.0A (120VAC) or 1.5A (220VAC)
- System Operating Voltage: 24 VDC Nominal
- Loop Capacity: 6
- Devices Capacity: 242 devices per loop
- NAC outputs:2 Class B, Power-limited NAC, Max current total 2.5A@24VDC
- Relay Outputs (5): 2A@24VDC
- Operating Environment: 32-120° F, ≤93% RH, non-condensing
- Dimension: 516mm(W) x 840mm(H) x 180mm(D)
