On Spotfire Water Cum Foam Moniter with 10X Nozzle
₹ 33,432.94 GST included

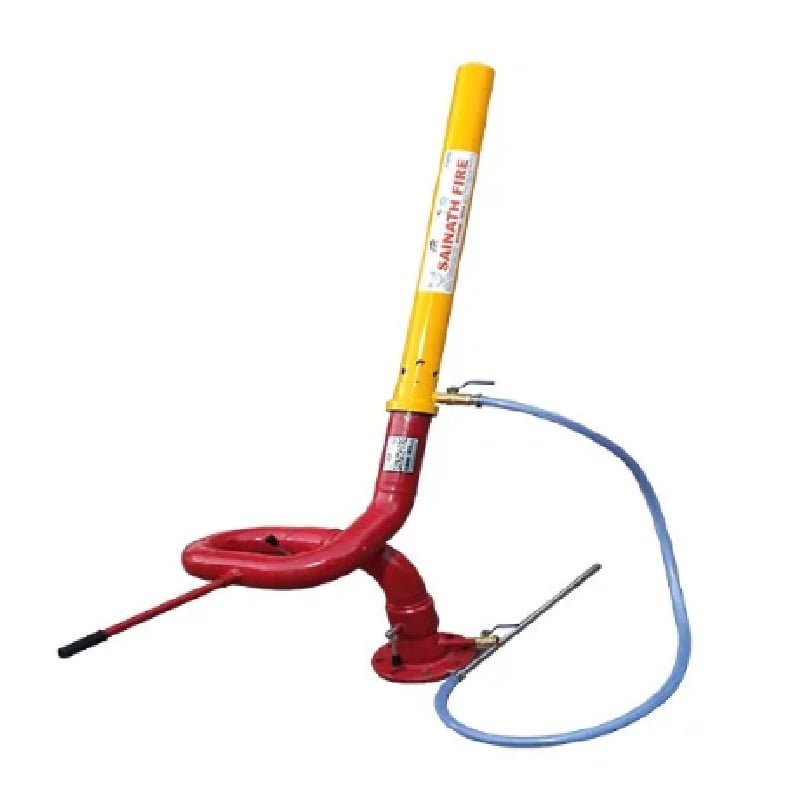

On Spotfire Warer Cum Foam Moniter with 10X Nozzle Foam monitor function same as water monitor. It could be used to discharge foam as well as water. Foam monitors are usually used where high amount of fire hazards can occurs.
In stock
Description
On Spotfire Warer Cum Foam Moniter with 10X Nozzle Foam monitor function same as water monitor. It could be used to discharge foam as well as water. Foam monitors are usually used where high amount of fire hazards can occurs.
Features
- Ideal for Fixed Installation
- Made out of Carbon Steel heavy duty seamless pipe, hot dip galvanized for Corrosion Resistance
- Design that ensures ease of operation and maintenance
- Vertical and Horizontal movement is due to Gunmetal or optional Stainless Steel Swivel Joints with Ball Bearing. Tiller Bar fixed on the Barrel is used to move the Monitor to desired position and then threaded Locks are tightened to secure the monitor at a desired horizontal and vertical position
- For Monitors with Higher Flows, Horizontal and Vertical Movement is made with the Self Locking type enclosed Geared Swivel Joints with Worm and Worm Gear using Hand Wheel that ensures smooth and easy movement during ongoing operation of Monitor.
- Monitor is capable of Horizontal Rotation of 360 Degrees and Vertical Traverse of + 90 Degrees to -45 Degrees
- Available with variety of Nozzles Solid Bore Jet Nozzle, Hollow Jet-Fog Nozzle, Self-Aspirating and Self Inducting Foam Barrel and Self Inducting Aqua Foam Nozzle
Specifications
- Product: Fire Fighting Equipment
- Brand: On Spotfire
- Waterway: 90 mm
- Mounting flange: 3 or 4 in A.S.A. or as per demand
- Outlet connection: 2 « B.S.P. male or as per demand
- Maximum width: 480 mm
- Maximum height: 700 mm
- Maximum front to
- Back: 590 mm (without nozzle)
- Weight: 25 kg without nozzle
