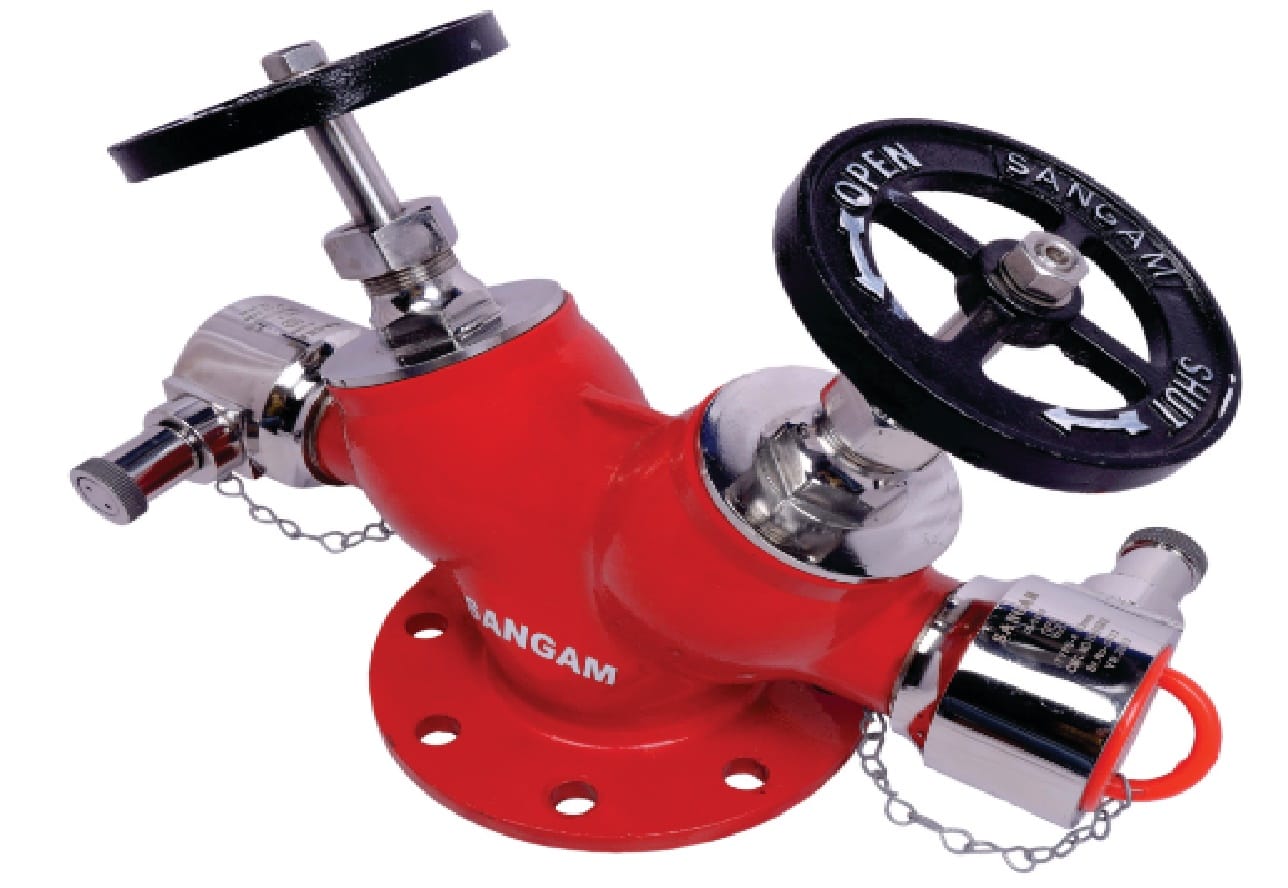

Sangam Stainless Steel Double Hydrant Valve – Type-B, Full SS304
₹ 12,782.94 GST included
Design Standard IS 5290. Confirming to Type B specification. Screwed in Bonnet having instantaneous coupling with Double outlet. Large flow way area to get full flow of water. Leakage proof by virtue of elastomer Seat. Smooth operation of blank cap for quick mounting of water pipe.
In stock
Description
Sangam Stainless Steel Double Hydrant Valve – Type-B, Full SS304 provide the means to draw water for fire fighting from the Fire water piping network. They are normally mounted onto stand posts, fitted on the fire water network. These Hydrant Valve (Double headed), as per IS: 5290, made of Stainless Steel (SS304), having 100 mm flanged inlet, and 2 Nos. 63 mm Female Instantenous outlets, C.I. handwheels for hydrant operation, and PVC blank caps with chain. Body duly painted with 2 coats of superior quality paint. H.P. tested to 21 kgf/cm2 (body) and 14 kgf/cm2 (seat). Flow 1800 lpm (min) at 7 kgf/cm2.
Features
- Design Standard IS 5290.
- Confirming to Type B specification.
- Screwed in Bonnet having instantaneous coupling with Double outlet
- Large flow way area to get full flow of water
- Leakage proof by virtue of elastomer Seat
- Smooth operation of blank cap for quick mounting of water pipe
Specifications
- Brand : Sangam
- Valve Size : 4 Inch Flanged for Double Outlet
- Material : Stainless Steel
- Size : 63mm
- Usage/Application : Industrial
- Automation Grade : Manual
- Hand Wheel Material : Cast Iron
- Diameter : 100mm
- Pressure : 21Kg
- Weight : 15.5Kg Approx
- Minimum Order Quantity: 10 Piece
