Description

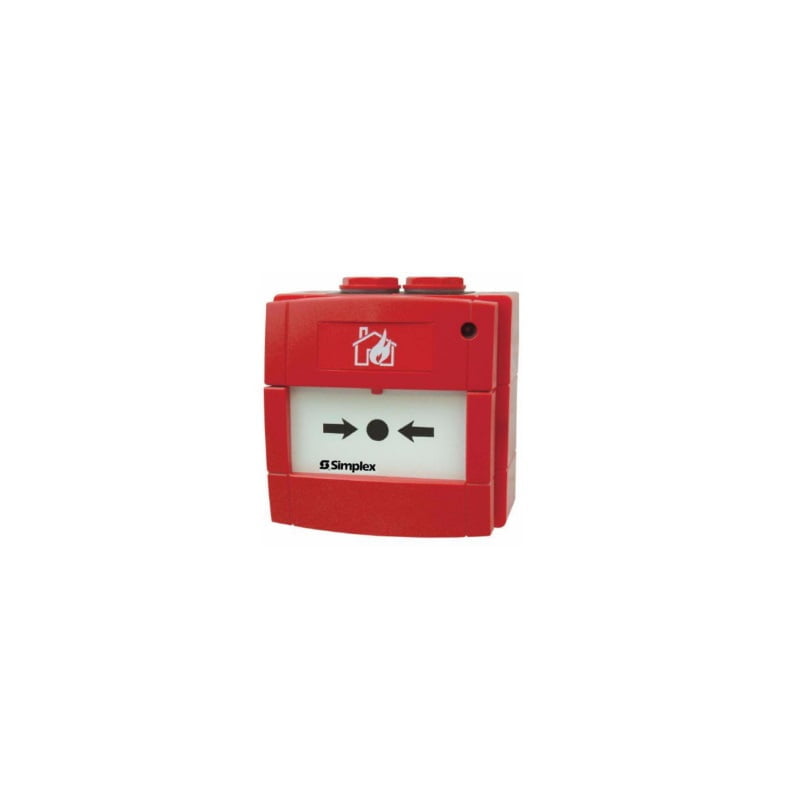

Simplex Manual Call Point with Back box, Gland, Gatta, and Screws with a compact communications module, installs easily to satisfy demanding applications. An integral individual addressable module (IAM) monitors the status and communicates changes to the connected control panel via IDNet communications.
Features
- Power and data supplied via IDNet addressable communications using a single wire pair
- Test key allows the callpoint to be tested without breaking the glass
- Requires a special key to open the callpoint
- Designed for fast and easy installation
- Simple snap fit to mounting box
- Designed for EMI compatibility
- Enhanced aesthetics
- Surface mounting
Specifications
- Product: Manual Fire Alarm Call Point with Backbox
- Brand: Simplex
- Power and communications: IDNet, 1 address per callpoint
- Address means: DIP switch, 8 position
- Device type: KACPUL
- Wire connections: M3 spade terminals
- Material: PC/ABS
- Color: Red, RAL3001
- Dimensions (H x W x D): 3 5/8 in. x 3 1/2 in. x 2 7/8 in. (93 mm x 89 mm x 28 mm)
- Ingress protection: IP67
