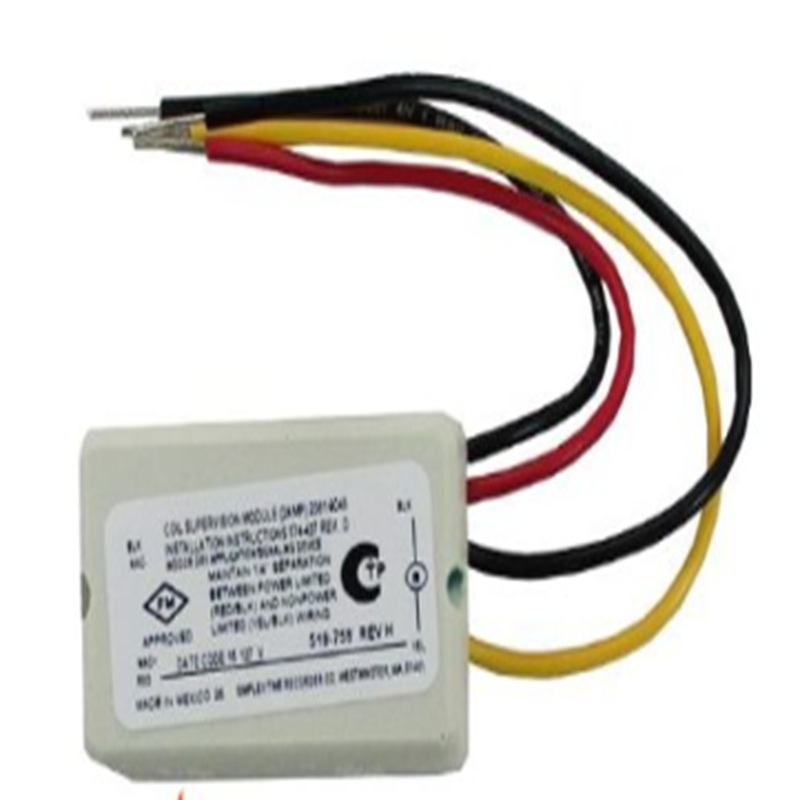

Simplex – Model 2081 – 9046 Coil Supervision Module

Name: Simplex - Model 2081 - 9046 Coil Supervision Module
SKU: FSIN00003444
Price: 4307.00 INR
Availability: InStock

See all products from simplex

₹ 4,307.00 GST included

Compare

Product Code : FSIN00003444 Brand: Simplex Seller: Approved by : [woo_pro_badges_extended]

quick processing
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

The Simplex 2081-9046 Coil Supervision Module is designed to provide reliable, supervised control of solenoid (coil) actuators in fire-suppression releasing systems. When used in combination with compatible suppression-release peripherals and a Simplex releasing control panel (such as the 4010ES/4100ES series) it delivers a robust and code-compliant solution for actuator supervision in automatic extinguishing, deluge or pre-action sprinkler system applications.
Mounted in the actuator junction box, this module monitors coil continuity, provides short-circuit supervision of the actuator circuit, and ensures the suppression system path is properly wired and maintained.

Features

Compact supervision module that mounts directly in the actuator (solenoid) junction box — no bulky external add-on required
Designed to monitor coil continuity and detect opens and ground faults in the actuator circuit (when used per system wiring guidelines).
Compatible with 24 VDC solenoid coils (and approved actuators rated up to 2 A) when wired per manufacturer instructions
Internally fused (non-replaceable) for up to 3 A, providing inherent protection of the module from over-current conditions
Color-coded, pre-wired leads for ease of installation (Red/Black for NAC input, Yellow/Black for coil output) and clarity in separated wiring zones.
Epoxy-encapsulated construction ensures durability in fire-system environments while maintaining compact size.

Specifications

Model 2081-9046 Coil Supervision Module
Input Power 24 VDC nominal (via NAC from control panel)
Module Standby Current Approx. 2.2 mA (maximum)
Operating Environment Indoor use only; typical ambient 0 °C to 49 °C (32 °F to 120 °F), humidity up to 90% RH at 32 °C.
