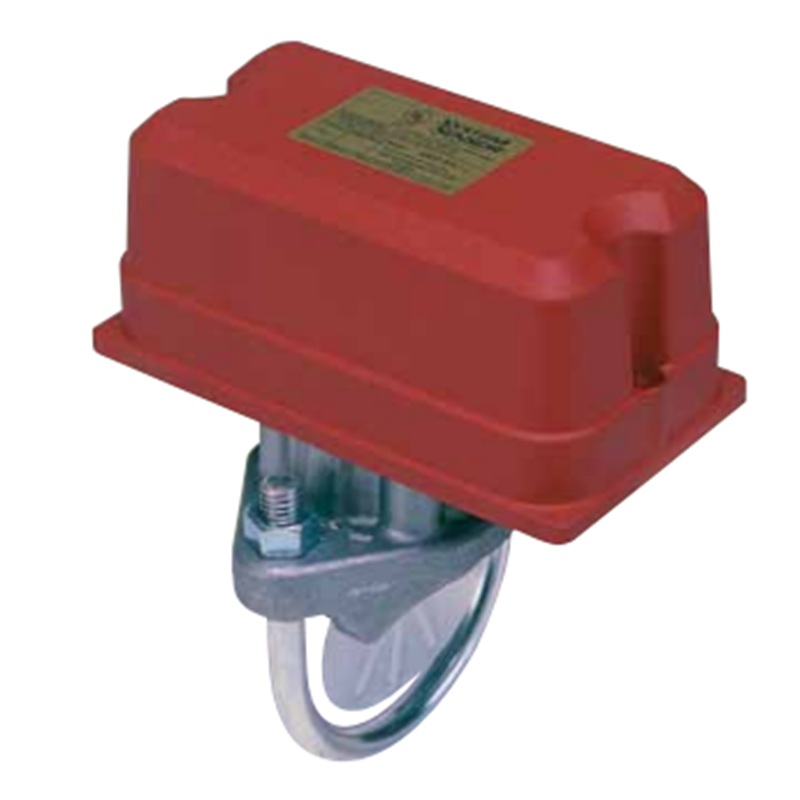

System Sensor – WFD Series Waterflow Detector 4 inch – Model WFD100
See all products from system-sensor₹ 8,319.00 GST included
The System Sensor WFD100 Waterflow Detector from the WFD series is a highly reliable device designed to detect water movement in fire sprinkler systems. Built with precision and durability, it provides accurate monitoring of sprinkler system water flow to ensure timely fire detection and alarm activation. With a rugged construction, easy installation features, and proven performance, the WFD50 is the ideal choice for safeguarding commercial, residential, and industrial properties.
Description
The System Sensor WFD100 Waterflow Detector from the WFD series is a highly reliable device designed to detect water movement in fire sprinkler systems. Built with precision and durability, it provides accurate monitoring of sprinkler system water flow to ensure timely fire detection and alarm activation. With a rugged construction, easy installation features, and proven performance, the WFD50 is the ideal choice for safeguarding commercial, residential, and industrial properties.
Features
- Two-inch mounting hole provided in new WFD30-2 models
- UL-listed models are NEMA 4 rated
- Sealed retard mechanism immune to dust and other contaminants
- Field-replaceable retard mechanism and SPDT switches
- Rugged, dual SPDT switches enclosed in a durable terminal block
- Accommodates up to 12 AWG wire
- Designed for both indoor and outdoor use
- 100 percent synchronization activates both alarm panel and local bell
Specifications
- Brand: System Sensor
- Series: WFD Series
- Model: WFD100
- Product Type: Waterflow Detector
- Switch Rating: 10.1 A @ 125/250 VAC; 2.0 A @ 30 VDC
- Operating Pressure Range: Up to 450 psi (31 bar)
- Certifications: UL Listed, FM Approved, CSFM, MEA
