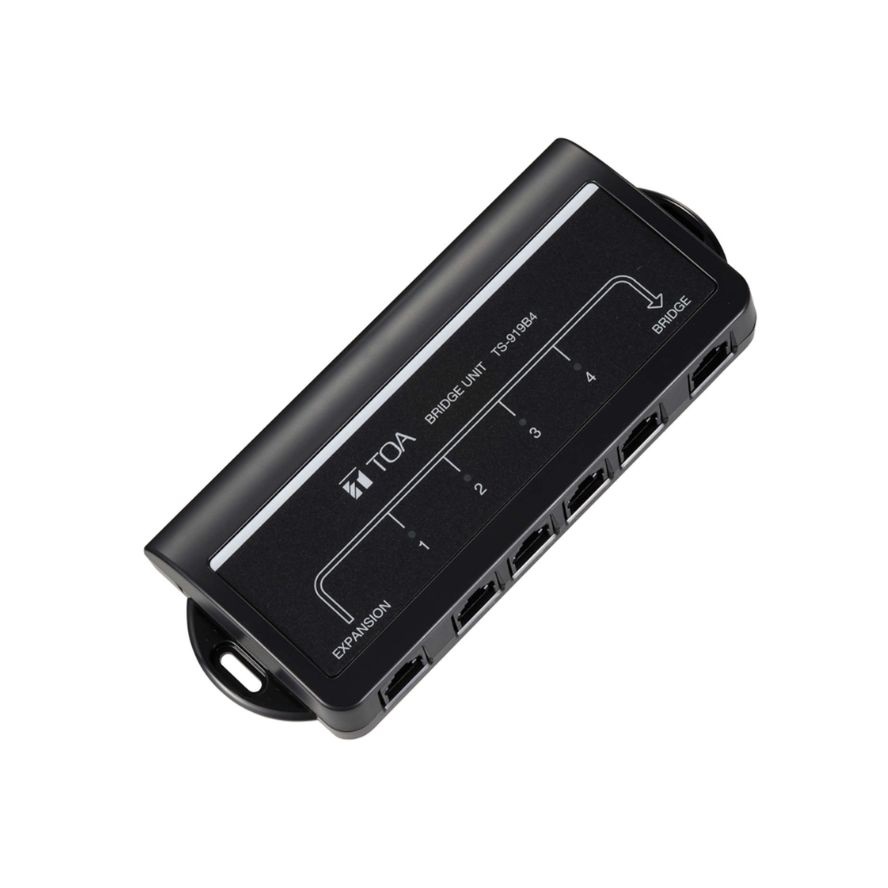

TOA Bridge Unit, TS-919B4
₹ 17,346.00 GST included
Bridge Units for Connecting Single Wired conference unit of the TS-911 or TS-912 types. Connected to the conference unit by means of CAT5 Cable.
In stock
Description
TOA Bridge Unit, TS-919B4 is for Connecting Four Wired Conference units of the TS-811, TS-911, TS-812, or TS-912. It connects to the conference unit with a Category 5 cable.
Features
- Bridge Units for Connecting Single Wired conference unit of the TS-911 or TS-912 types
- Connected to the conference unit by means of CAT5 Cable
Specifications
- Brand : TOA
- Power source : 24 V DC Supplied from the optional TS-918 Expansion Unit
- Current consumption : 26 mA
- Branching Loss : Upstream: 17.5 dB, Downstream: 16.5 dB
- Insertion Loss : Upstream: 3 dB, Downstream: 2 dB
- LED Indicator : Connection status indicator x 4
- Number of Connectable Conference Units : 4 units
- Finish : ABS resin, black
- Dimensions : 176.2 (W) x 75 (H) x 29.8 (D) mm (6.94 x 2.95 inch x 1.17 inch)
- Weight : 160 g (0.35 lb)
