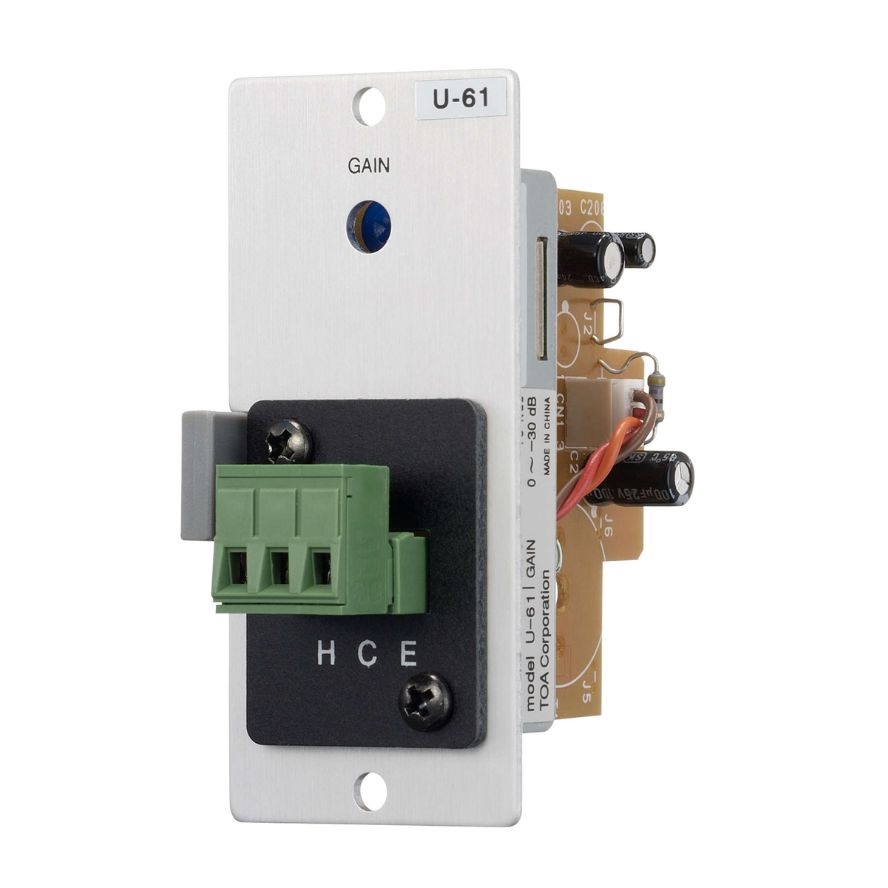

TOA Line Input Module, U-61S

Name: TOA Line Input Module, U-61S
SKU: FSIN0000362329
Price: 4307.00 INR
Availability: InStock

See all products from toa

₹ 4,307.00 GST included

For Unbalanced, line level sources such as tuners, cassette decks, CD players, computer sound cards, jukeboxes, mixers and satellite receivers. For Adjacent Sources (less than 15ft from the host unit). Compressor function prevents overload and distortion. Master Compressor Mode. Connector: Removable Terminal Block.

In stock

Compare

Product Code : FSIN0000362329 Brand: TOA Seller: Approved by : [woo_pro_badges_extended]

quick processing
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

TOA Line Input Module, U-61S is a Line Input Module to be used in Conjuction with the 900 series Components and other TOA’s equipment. It has an unbalanced line input with removable terminal block connector, compressor function and gain control.

Features

For Unbalanced, line level sources such as tuners, cassette decks, CD players, computer sound cards, jukeboxes, mixers and satellite receivers
For Adjacent Sources (less than 15ft from the host unit)
Compressor function prevents overload and distortion
Master Compressor Mode
Connector: Removable Terminal Block

Specifications

Brand : TOA
Power Supply : 24 V DC (supplied from the main frame)
Current Consumption : 30 mA
Input Sensitivity : minus 20 dB (rated output: minus 20 dB), adjustable: minus 20 to plus 10 dB
Input Impedance : 220 kohm, unbalanced
Frequency Response : 20 Hz to 20 kHz plus or minus 1.0 dB
Distortion : 0.05 percent or less (1 kHz, output: 0 dB)
Noise Level : minus 90 dB (20 Hz - 20 kHz BPF)
Gain : minus 30 to 0 dB
Connector : Terminal Block (3P)
Dimensions : 35 (W) x 78 (H) x 88 (D) mm (1.38 inch x 3.07 inch x 3.46 inch)
Weight : Max. 60 g (0.13 lb)
