What Is an Automatic Modular Type Fire Extinguisher? A Complete Guide
06
Jul
What Is an Automatic Modular Type Fire Extinguisher? A Complete Guide to one of the most reliable innovations in modern fire safety equipment. In simple terms, an automatic modular type fire extinguisher is a ceiling-mounted, self-activating unit that detects heat and releases an extinguishing agent directly onto a fire, without anyone needing to pull a pin or aim a hose. This makes it a critical part of fire protection equipment for spaces that are often unattended, such as electrical panels, server rooms, and warehouses.
As fire safety products continue to evolve, businesses are moving away from relying solely on manual devices. A modular fire extinguisher works around the clock, offering continuous coverage even when no one is present to respond. In this guide, we will break down how these units work, where they are used, their benefits and limitations, how to choose the right one, and answer the most commonly searched questions about this technology.
What Is an Automatic Modular Type Fire Extinguisher?
An automatic modular type fire extinguisher is a self-contained, heat-activated fire fighting product mounted on a ceiling or wall above a fire hazard. It contains a pressurized extinguishing agent and a heat-sensitive triggering mechanism, typically a glass bulb or fusible element, that ruptures once the surrounding temperature crosses a set threshold. When triggered, the unit instantly discharges its agent over the protected area, suppressing the fire at its earliest stage. Unlike a portable extinguisher, it does not require a person to detect the fire or operate the device, making it one of the most dependable forms of automatic fire suppression system available today.
How Does an Automatic Modular Fire Extinguisher Work?
Understanding the working mechanism helps explain why this device has become a preferred choice among fire protection equipment. The process is straightforward and happens in a matter of seconds.
- A fire starts and heat begins to rise in the protected zone.
- The heat-sensitive bulb or fusible link inside the unit reaches its rated activation temperature.
- The bulb bursts, releasing the internal pressure holding back the extinguishing agent.
- The agent, whether ABC dry powder, clean agent, or foam, is discharged directly over the fire.
- The fire is suppressed or extinguished before it can spread to nearby equipment or structures.
Because there is no need for electricity, wiring, or manual activation, these units are especially valuable in remote or unmanned locations where a delayed response could otherwise lead to serious damage.
Modular ABC Fire Extinguisher vs Other Automatic Fire Protection Systems
A modular ABC fire extinguisher is one of the most widely used variants because ABC dry powder can handle Class A (solid combustibles), Class B (flammable liquids), and Class C (electrical) fires. However, not every space has the same fire risk profile, which is why fire safety equipment suppliers typically offer multiple agent options:
| Feature | ABC Dry Powder Modular Unit | Clean Agent Modular Unit | Foam-Based Modular Unit |
| Best suited for | General industrial areas, Class A/B/C fires | Electrical panels, server rooms, sensitive equipment | Flammable liquid storage, Class B fires |
| Residue after discharge | Powdery residue | No residue, safe for electronics | Foam residue, needs cleanup |
| Activation temperature | Typically 68°C to 79°C | Typically 68°C to 93°C | Typically 68°C to 79°C |
| Coverage area | 4–6 sq. meters (varies by size) | 4–6 sq. meters (varies by size) | 4–6 sq. meters (varies by size) |
| Ideal industries | Manufacturing, warehouses | IT rooms, control panels, telecom | Chemical storage, fuel areas |
This table highlights why selecting the correct extinguishing agent matters as much as choosing the extinguisher type itself.
Use Cases and Applications of Ceiling Mounted Fire Extinguishers
A ceiling mounted fire extinguisher is designed for continuous, unattended protection, which is why it is used across a wide range of industries. Because these units respond automatically, they are particularly valuable in areas where a fire could go unnoticed until it becomes severe.
Common applications include:
- Electrical control panels and switchgear rooms
- Server rooms and IT data centers
- Warehouse fire protection for storage racks and inventory zones
- Generator rooms and transformer enclosures
- Manufacturing plants with automated machinery
- Chemical storage areas and flammable liquid rooms
- Industrial machinery spaces with limited human presence
An automatic fire extinguisher for electrical panels, in particular, has become a standard requirement in facilities that house sensitive or high-value electrical infrastructure, since even a small fire can cause costly downtime.
Advantages and Limitations of Automatic Modular Fire Extinguishers
Every fire safety equipment solution has its strengths and boundaries, and it helps to understand both before making a purchase decision.
Advantages:
- Activates automatically, without needing a person present
- Provides fast fire suppression at the earliest stage of ignition
- Easy ceiling-mounted installation with no external power source required
- Delivers reliable protection for unattended or hard-to-access areas
- Helps reduce property damage and operational downtime
- Requires comparatively low maintenance once correctly installed
Limitations:
- Coverage area is limited to a specific zone below the unit
- Not a replacement for a full industrial fire suppression system in large facilities
- Requires periodic inspection to confirm the pressure gauge and bulb remain intact
- Effectiveness depends on correct sizing and placement for the hazard involved
Recognizing these limitations helps facility managers use modular units as one layer within a broader fire protection equipment strategy, rather than the sole line of defense.
Buying Guide: How to Choose the Right Automatic Modular Fire Extinguisher
Selecting the right unit is not just about price. A few practical factors make the difference between adequate protection and inadequate protection.
- Identify the fire class: Confirm whether the area faces Class A, B, C, or electrical fire risks.
- Match the extinguishing agent: Choose ABC powder, clean agent, or foam based on the equipment being protected.
- Check the coverage area: Match the unit’s rated coverage to the size of the room or panel.
- Confirm the activation temperature: Higher ambient heat environments may need a higher-rated bulb.
- Verify certifications: Look for ISI, UL, or EN certification depending on your region.
- Choose a reliable fire safety equipment supplier: A trusted supplier ensures genuine components, proper installation guidance, and after-sales maintenance support.
Our Range of Automatic Modular Type Fire Extinguishers
As a trusted fire safety equipment supplier, we stock a wide range of modular fire extinguisher brands and capacities, so you can match the right unit to your fire hazard and coverage area. Below is our current product range across four leading brands:
KalpEX (ABC Powder Modular Fire Extinguisher):

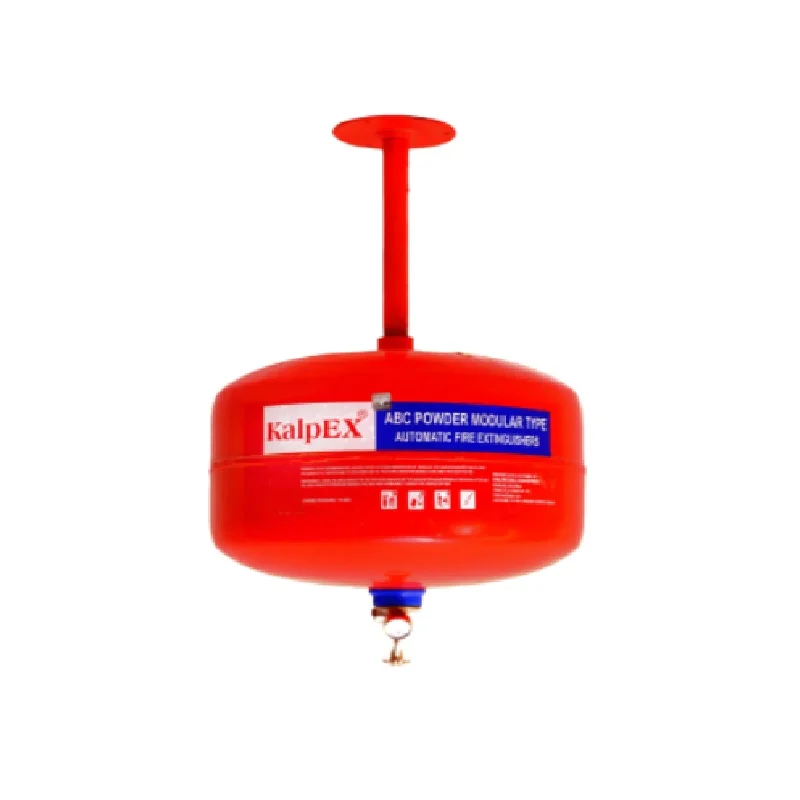

- KalpEX 2 kg ABC Powder Modular Fire Extinguisher
- KalpEX 10 kg ABC Powder Modular Fire Extinguisher
- KalpEX 15 kg ABC Powder Modular Fire Extinguisher
Fyrax (Modular Automatic Fire Extinguisher):

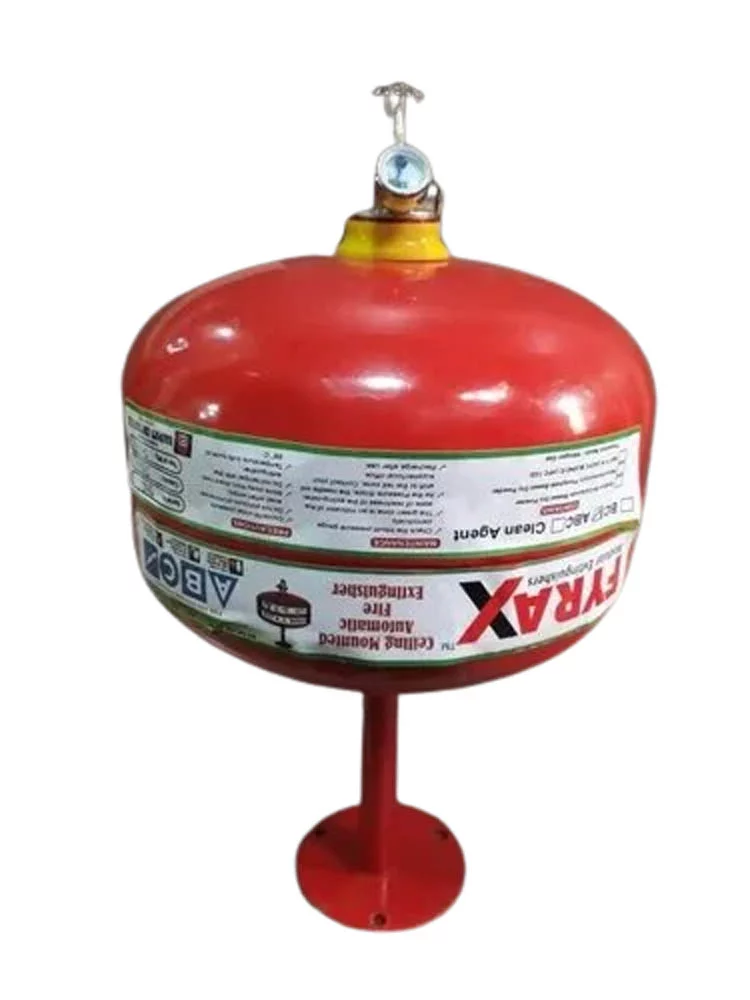

- Fyrax 2 Kgs Modular Automatic Fire Extinguisher
- Fyrax 5 Kgs Modular Automatic Fire Extinguisher
- Fyrax 10 Kgs Modular Automatic Fire Extinguisher
Safe On (ABC Powder & Clean Agent Modular Fire Extinguisher):
- Safe On 2 kg ABC Powder Modular Fire Extinguisher
- Safe On 5 kg ABC Powder Modular Fire Extinguisher
- Safe On 10 kg ABC Powder Modular Fire Extinguisher
- Safe On 2 kg Clean Agent Modular Fire Extinguisher
- Safe On 5 kg Clean Agent Modular Fire Extinguisher
- Safe On 10 kg Clean Agent Modular Fire Extinguisher
Finish Fire (D Modular Type Fire Extinguisher):

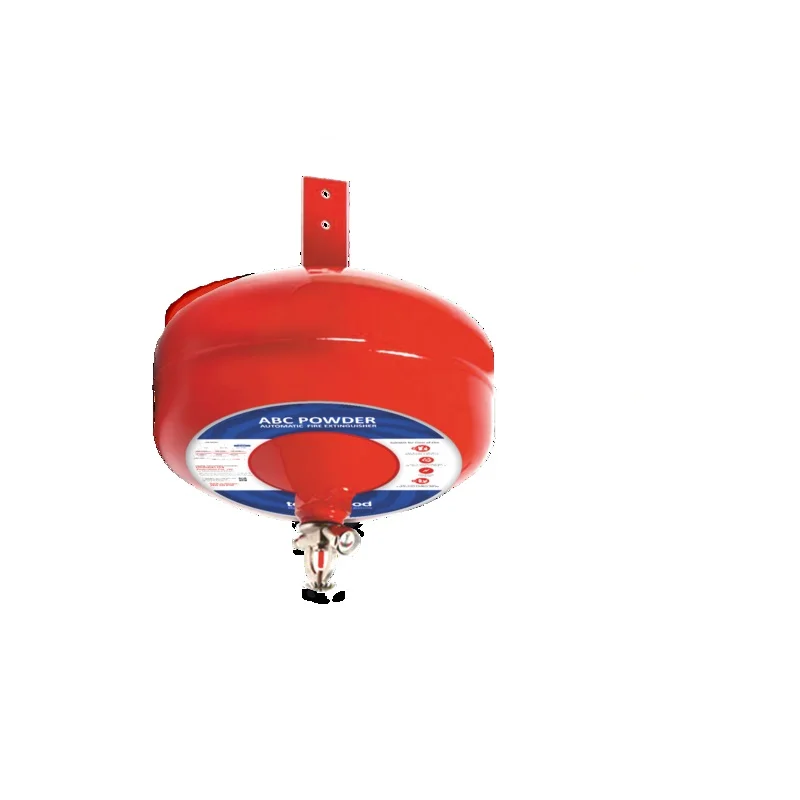

- Finish Fire RSPM2 2kg D Modular Type Fire Extinguisher
- Finish Fire RSPM5 5kg D Modular Type Fire Extinguisher
- Finish Fire RCM10 10kg D Modular Type Fire Extinguisher
Each brand is built for a specific purpose. KalpEX and Safe On ABC powder units suit general Class A, B, and C fire risks, while Safe On Clean Agent units are ideal for server rooms and electrical panels where residue-free suppression matters. Fyrax offers flexible capacity options for mid-sized industrial spaces, and Finish Fire’s D-type modular extinguishers are purpose-built for combustible metal fires often found in specialized manufacturing environments. Our team can help you match the right brand, capacity, and agent type to your facility’s exact fire safety equipment needs.
Standards and Certifications for Automatic Fire Suppression Systems
Automatic modular fire extinguishers sold through authorized fire safety products suppliers typically comply with recognized safety standards. Depending on the country of use, look for markings such as ISI certification (India), UL listing (United States), or EN 3 compliance (Europe). These certifications confirm that the unit has been tested for discharge performance, pressure retention, and activation reliability. Always ask your supplier for valid certification documents before installation, especially for industrial fire suppression applications where compliance is often mandated by local fire codes.
An automatic modular type fire extinguisher is a ceiling-mounted device that detects heat and automatically releases an extinguishing agent to suppress fire, without manual activation. It is commonly used in electrical panels, server rooms, and warehouses for round-the-clock, unattended fire protection.
Frequently Asked Questions About Automatic Modular Type Fire Extinguishers
- What is an automatic modular type fire extinguisher?
An automatic modular type fire extinguisher is a ceiling-mounted fire suppression device that activates automatically when exposed to high temperatures. It detects heat and discharges the extinguishing agent directly over the fire source, helping suppress fires in their early stages without requiring manual operation. - How does an automatic modular fire extinguisher work?
It activates when its heat-sensitive mechanism reaches a predetermined temperature. Once triggered, it releases the extinguishing agent over the protected area, helping control or extinguish the fire before it spreads significantly. - Where are automatic modular type fire extinguishers commonly installed?
They are widely used in electrical control rooms, server rooms, warehouses, generator rooms, transformer rooms, manufacturing plants, chemical storage areas, and industrial machinery spaces. - What are the advantages of automatic modular fire extinguishers?
They provide automatic activation, fast fire suppression, ceiling-mounted installation, protection for unattended areas, reduced property damage, and low maintenance requirements. - Which extinguishing agents are used in modular fire extinguishers?
Common options include ABC Dry Powder, Clean Agent, Foam, and other specialized suppression agents designed for specific fire hazards. - Are automatic modular fire extinguishers suitable for electrical fires?
Yes, certain units are designed specifically for electrical fire protection. The correct agent should be selected based on the equipment, voltage levels, and manufacturer’s recommendations. - What is the difference between an automatic modular extinguisher and a portable fire extinguisher?
An automatic modular extinguisher activates automatically when exposed to heat, while a portable extinguisher requires manual operation by a person. Modular systems protect unattended areas continuously, whereas portable units depend on someone responding to the fire. - Do automatic modular fire extinguishers require maintenance?
Yes, they require periodic inspection to check the pressure, mounting condition, activation mechanism, and overall integrity, in line with manufacturer recommendations. - How do I choose the right automatic modular fire extinguisher?
Base your choice on the fire class, extinguishing agent, coverage area, installation height, type of electrical equipment, industry requirements, and maintenance needs. - Where can I buy automatic modular type fire extinguishers?
They are available from authorized fire safety equipment suppliers and fire protection solution providers, ensuring certified products, expert installation guidance, and reliable after-sales support.
Final Thoughts
An automatic modular type fire extinguisher offers dependable, round-the-clock protection for spaces where manual response may not be possible in time. From electrical panels to warehouses, this technology has become an essential part of modern fire safety equipment, reducing risk and giving facility owners peace of mind. Choosing the right unit, agent, and certified supplier ensures your fire protection equipment performs reliably when it matters most.
Ready to protect your facility with a certified automatic modular fire extinguisher? Contact our fire safety equipment supplier team today for a free site assessment, expert product recommendations, and a custom quote tailored to your space. Get in touch now to secure the fire protection your business needs.
