Dahua Conventional Sounder Strobe, HI-HY-C151 (MOQ-2Pcs)
₹ 1,416.00 GST included
Meets all Requirements of latest EN54. Two-wire, Polarity-free realizes convenient wiring. Completes EMC test, it has Strong anti-electromagnetic Interference ability, High stability and Reliability. Ultra-low consumption and Strong loading capacity. Loud sound output over 75 dB(A) at 3 meters, accompanied with Bright Alarm signal. Non-loosening screws on base Terminal for easy Installation. Contacts material is highly acid-resistant and Rust-resistant. Designed in accordance with EN54-3 and EN54-23 standards.
In stock
Description

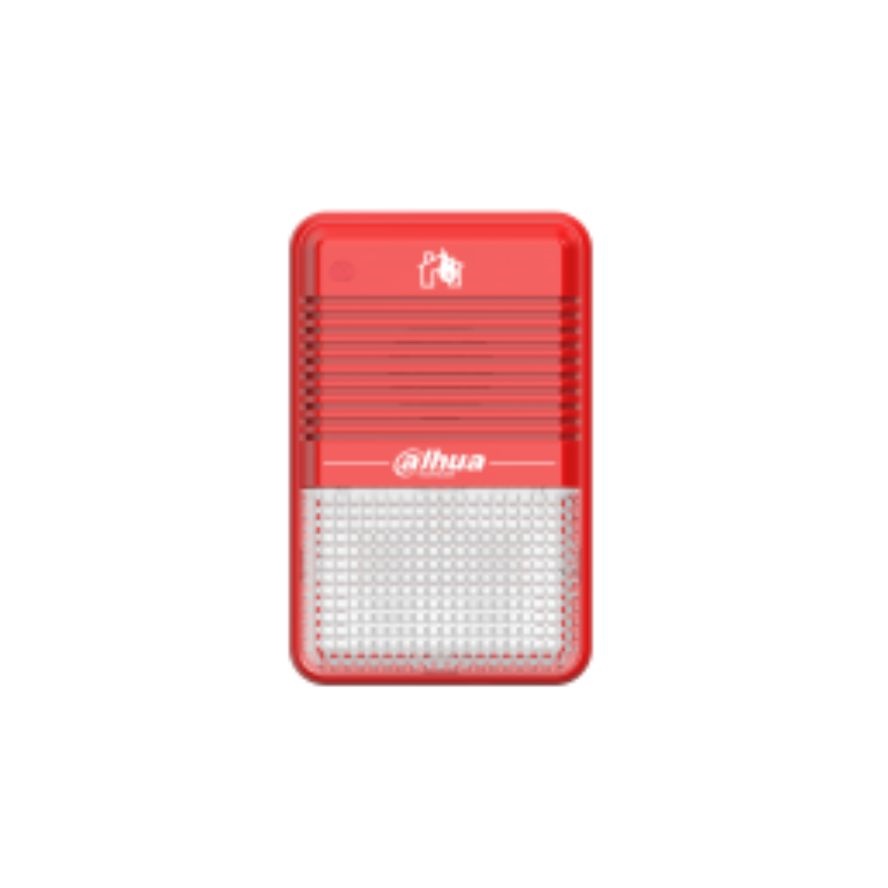

Dahua Conventional Sounder Strobe, HI-HY-C151 is a Mated Product of the Conventional Fire Alarm Control Panel. Integrated with Two-wire and Polarity-free Technology, it sends out an Audible and Light alarm signal to remind people when Fire occurs.
Features
- Meets all Requirements of latest EN54
- Two-wire, Polarity-free realizes convenient wiring
- Completes EMC test, it has Strong anti-electromagnetic Interference ability, High stability and Reliability
- Ultra-low consumption and Strong loading capacity
- Loud sound output over 75 dB(A) at 3 meters, accompanied with Bright Alarm signal
- Non-loosening screws on base Terminal for easy Installation
- Contacts material is highly acid-resistant and Rust-resistant
- Designed in accordance with EN54-3 and EN54-23 standards
Specifications
- Brand : Daua
- Working Voltage : DC9V-DC30V
- Rated Power : 132.6mW
- Current : Standby current: less or equal to 270μA, Alarm current: less or equal to 30mA
- Alarm Mode : Visual and audible alarm
- Alarm Volume : Modified Tone:4s-5s. Sound Pressure Level : 75dB-115dB (A) at 3 m (9.84 ft)
- Operating Temperature : Minus 10 Deg.C to Plus 55 Deg.C
- Operating Humidity Less or equal to 95 percent RH (no condensation)
- Dimensions (with base) 125 mm × 80 mm × 40 mm (4.92 inch × 3.15 inch × 1.57 inch)
- Weight (with base) 118 g (0.26 lb)
- Installation Wall Mount
